Database of Optical Constants for Cosmic Dust

Laboratory Astrophysics Group of the AIU Jena

Note: Users of these data are kindly asked to cite the original papers. Links to the literature can be found in the header of each class of materials. Thank you. H.M. 23/08/06

Selection


Optical Constants of Carbonates

Calcite (CaCO3) (Posch et al. 2007)

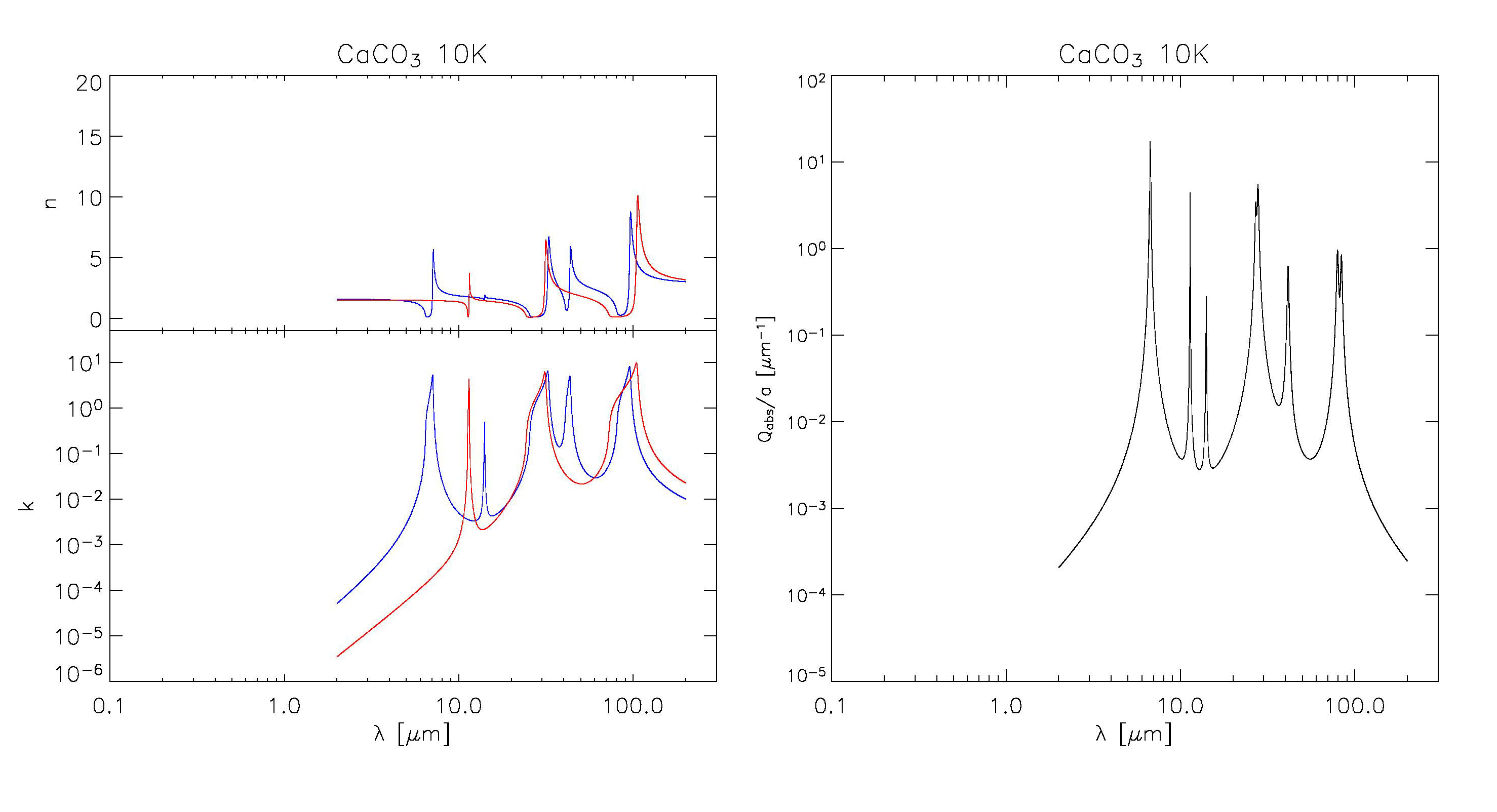

CaCO3 (10 K)
Spectra

Link to a 300dpi and a 600dpi image
Calcite E || c n-k-Data
Calcite E || a,b n-k-Data

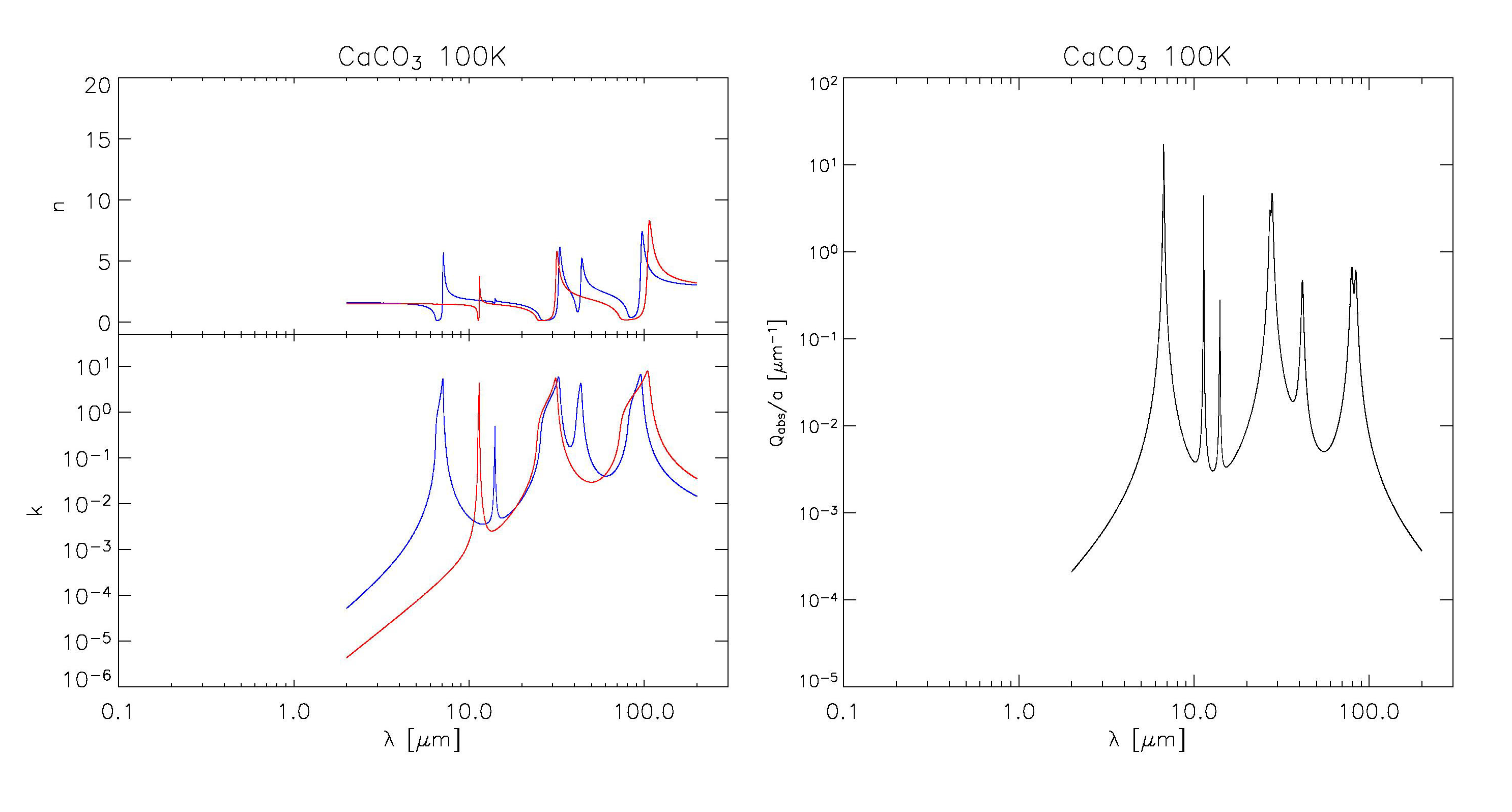

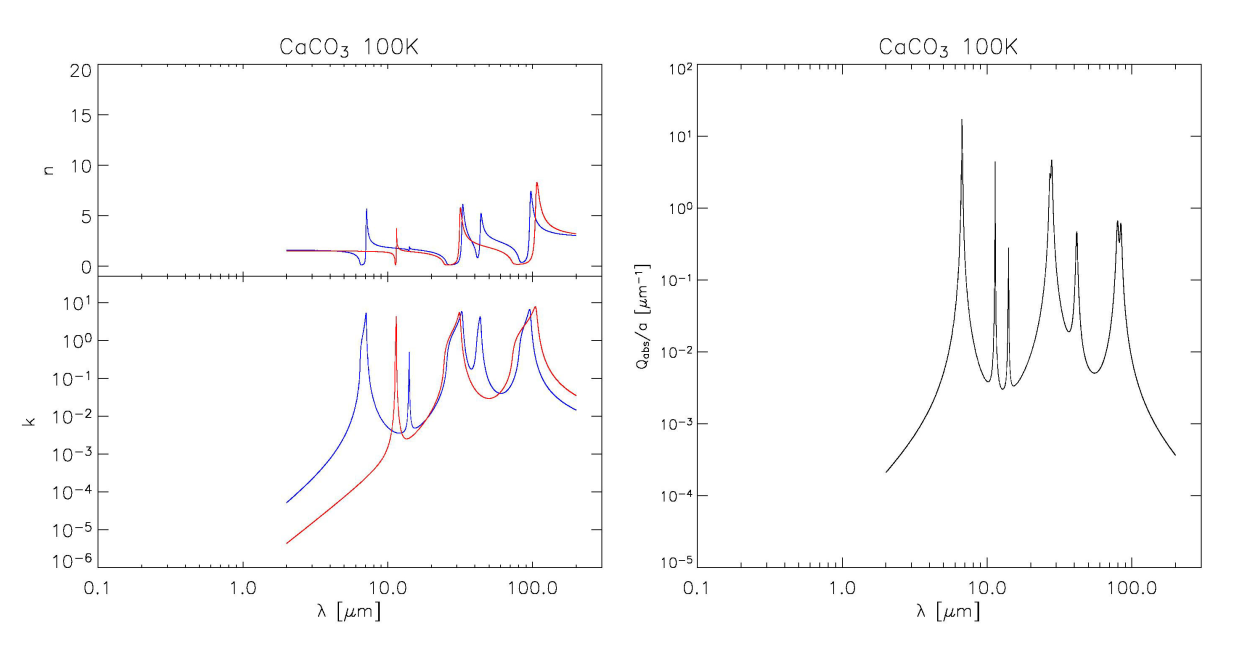

CaCO3 (100 K)
Spectra

Link to a 300dpi and a 600dpi image
Calcite E || c n-k-Data
Calcite E || a,b n-k-Data

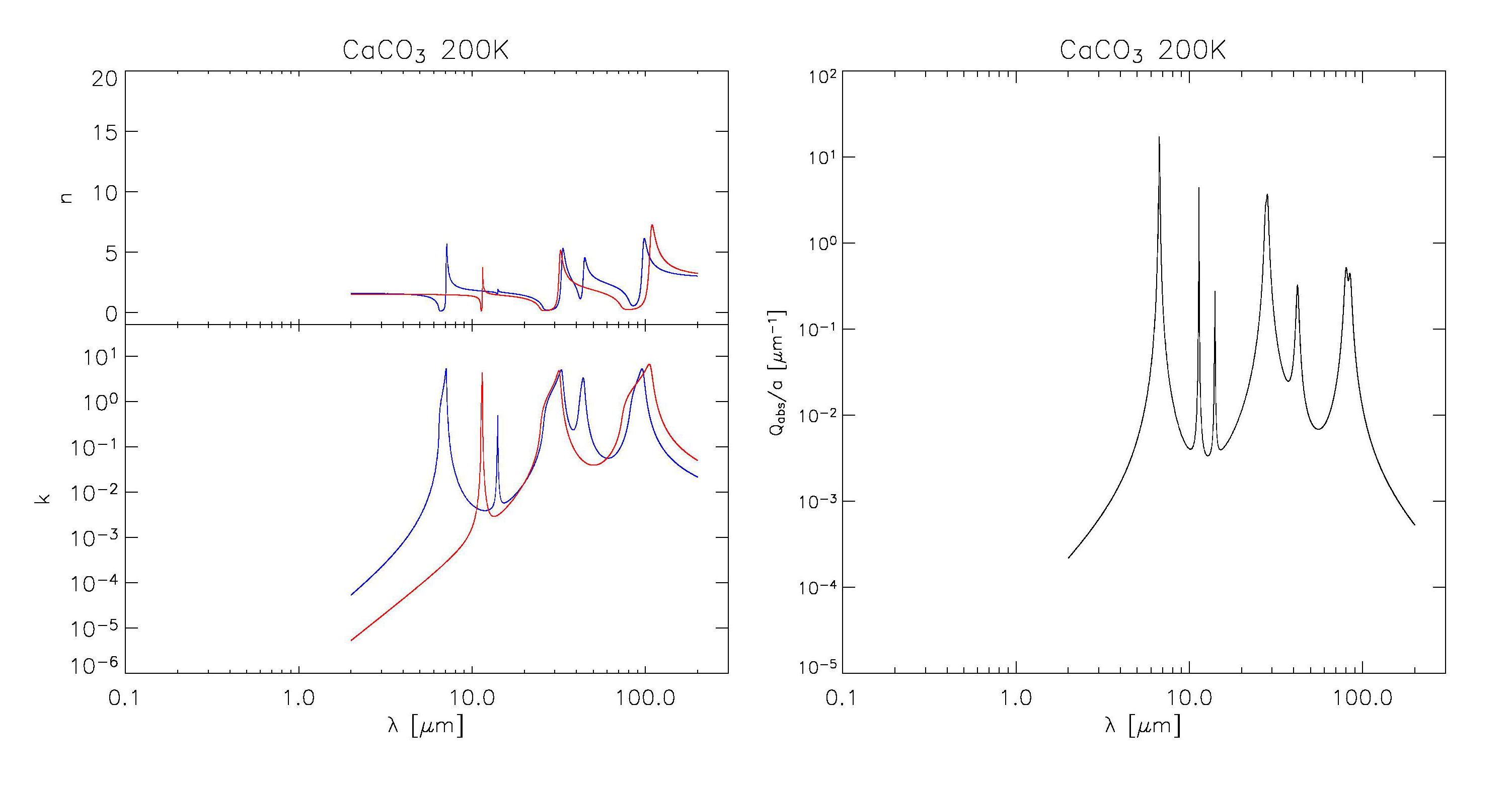

CaCO3 (200 K)
Spectra

Link to a 300dpi and a 600dpi image
Calcite E || c n-k-Data
Calcite E || a,b n-k-Data

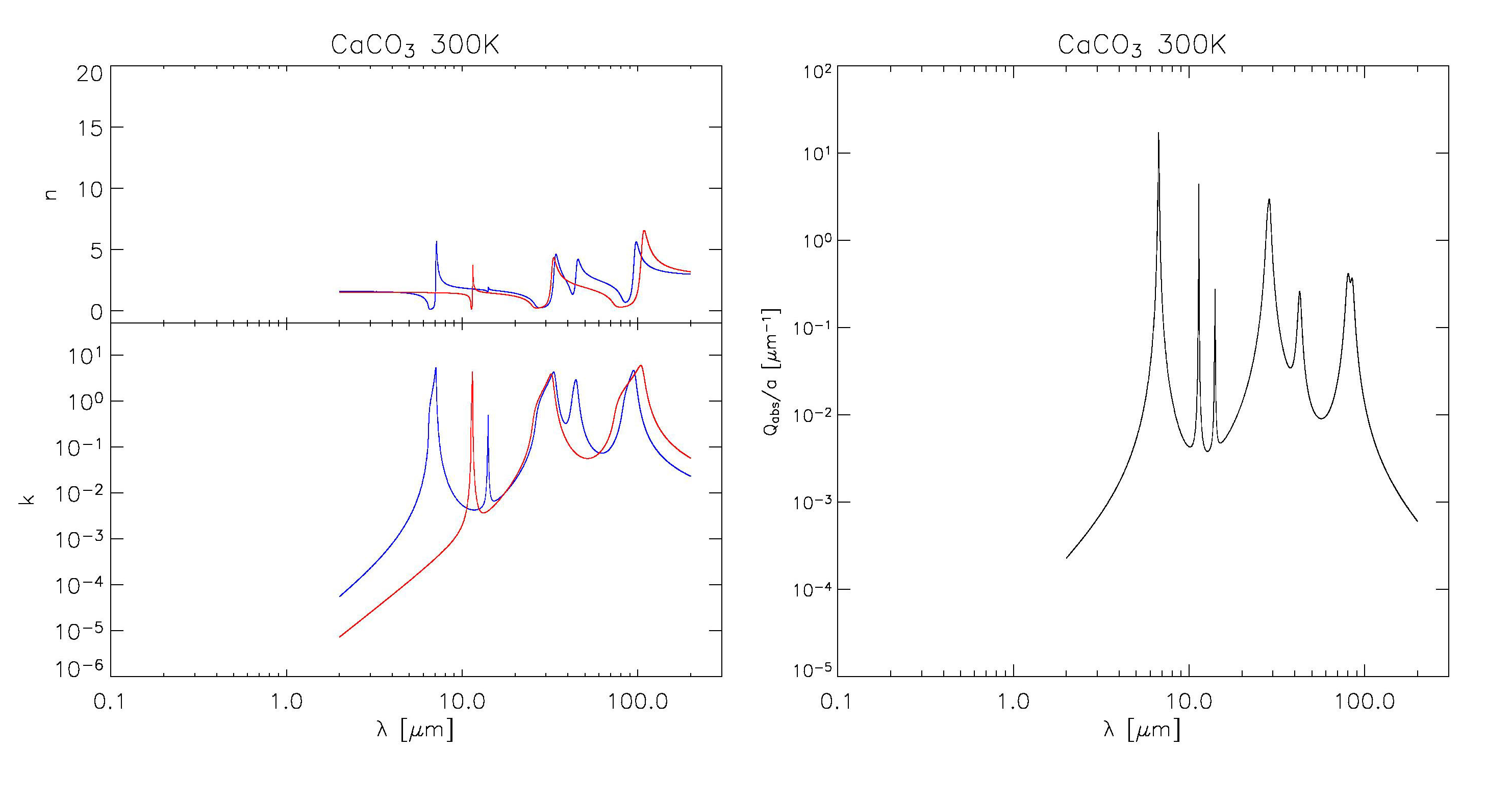

CaCO3 (300 K)
Spectra

Link to a 300dpi and a 600dpi image
Calcite E || c n-k-Data
Calcite E || a,b n-k-Data
Top Optical Database main page
Dolomite (CaMg(CO3)2) (Posch et al. 2007)

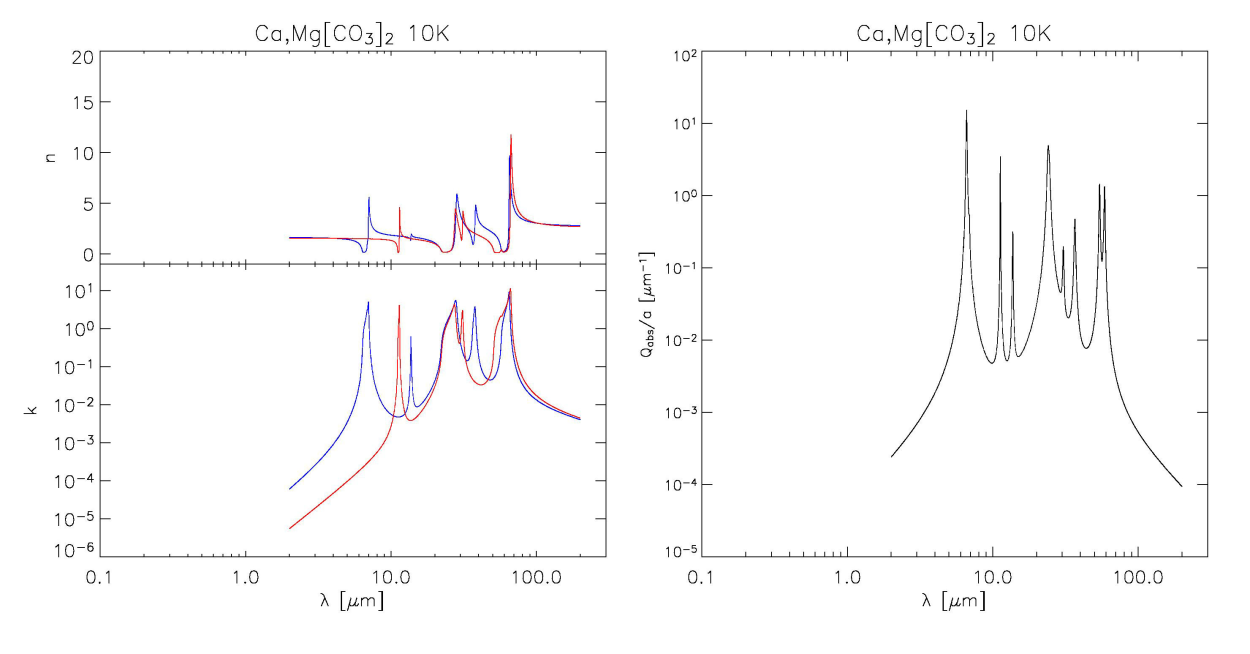

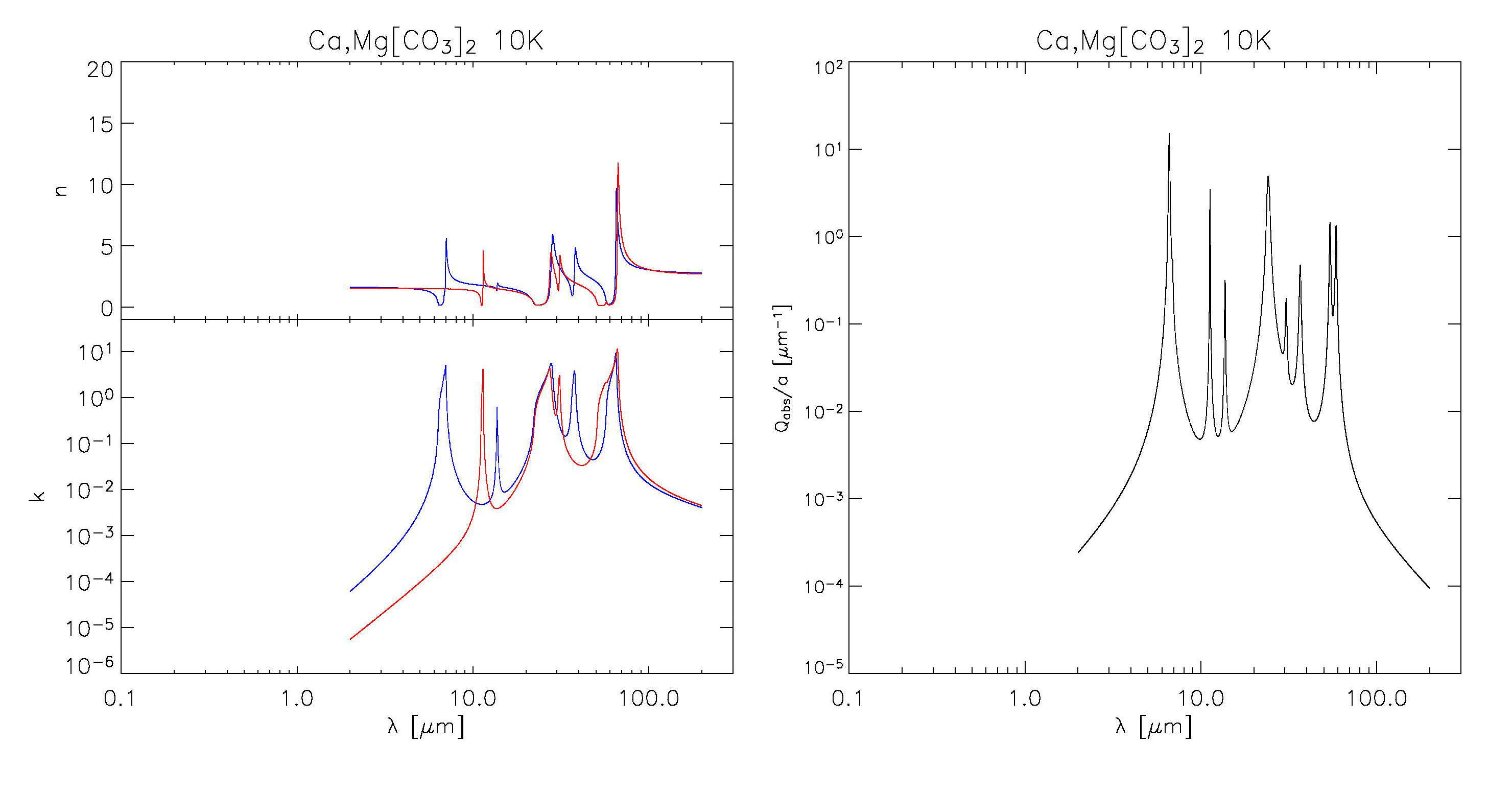

CaMg(CO3)2 (10 K)
Spectra

Link to a 300dpi and a 600dpi image
Dolomite E || c n-k-Data
Dolomite E || a,b n-k-Data

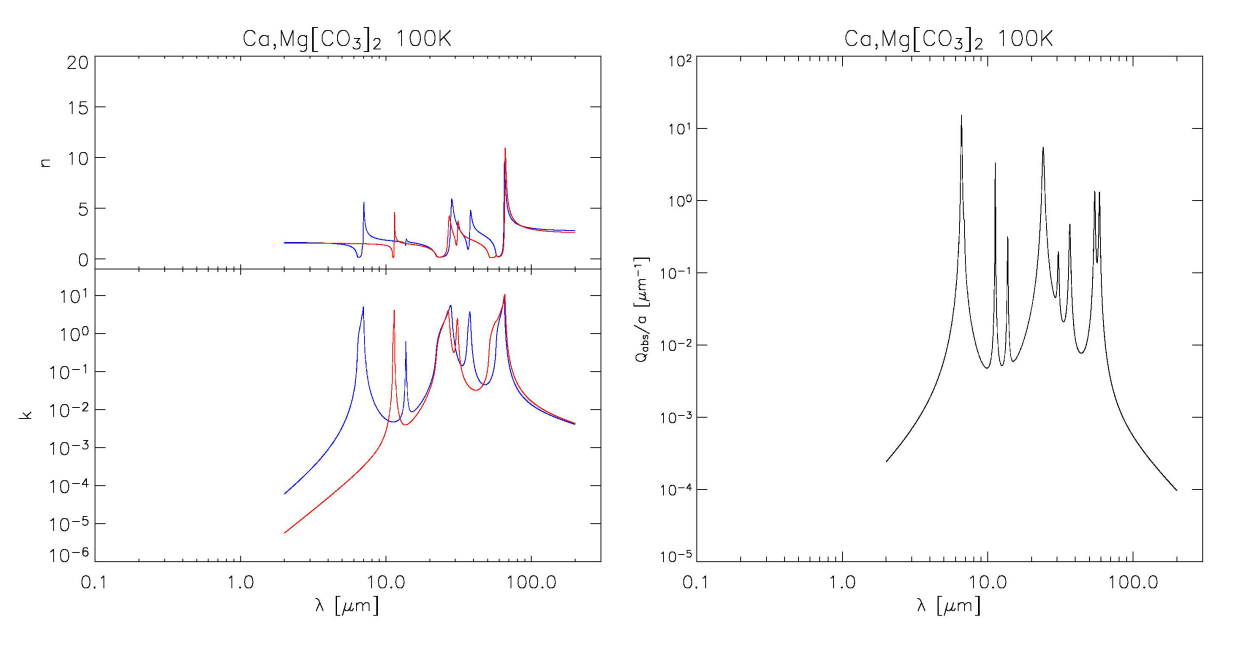

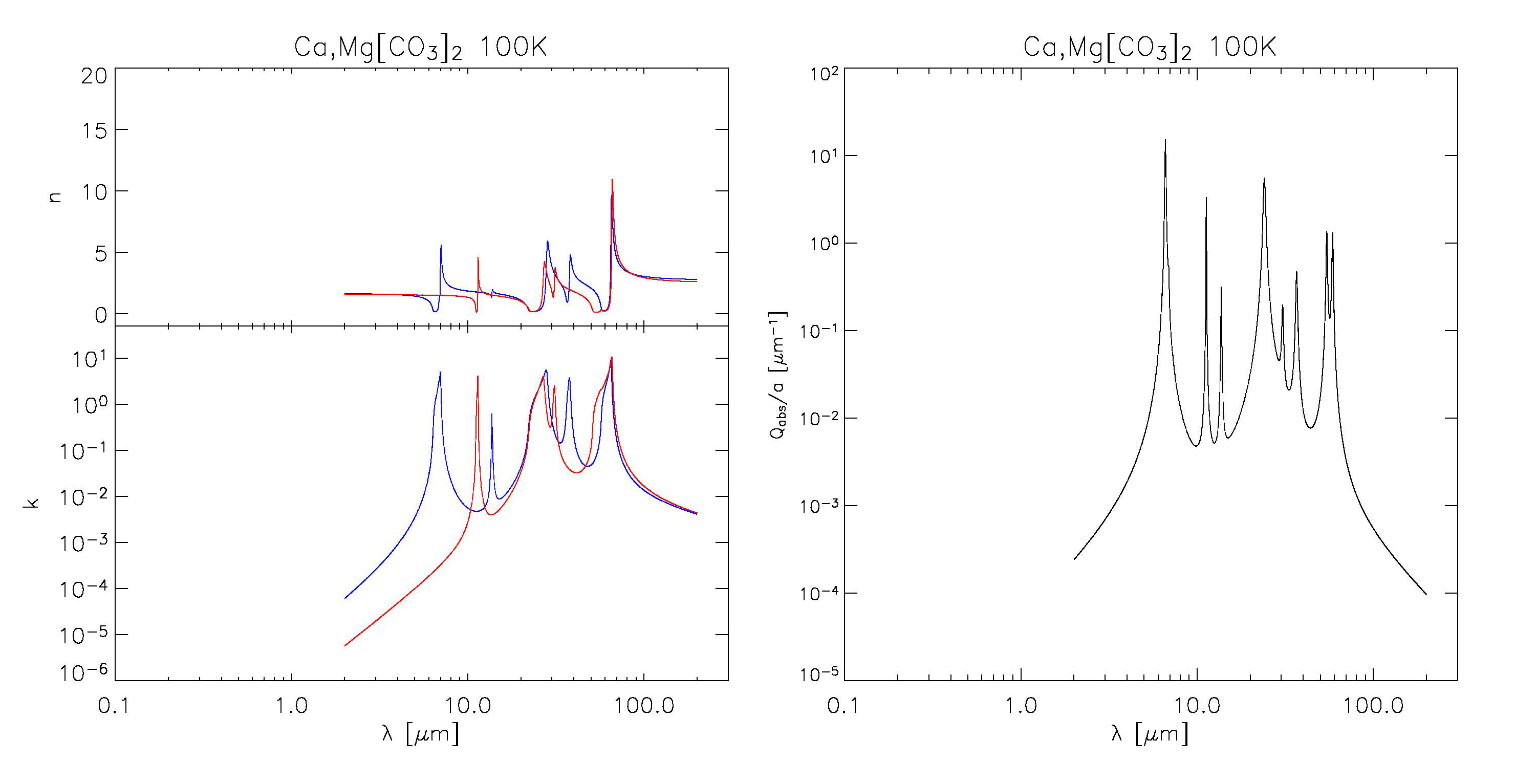

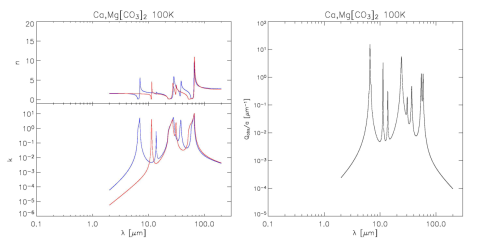

CaMg(CO3)2 (100 K)
Spectra

Link to a 300dpi and a 600dpi image
Dolomite E || c n-k-Data
Dolomite E || a,b n-k-Data

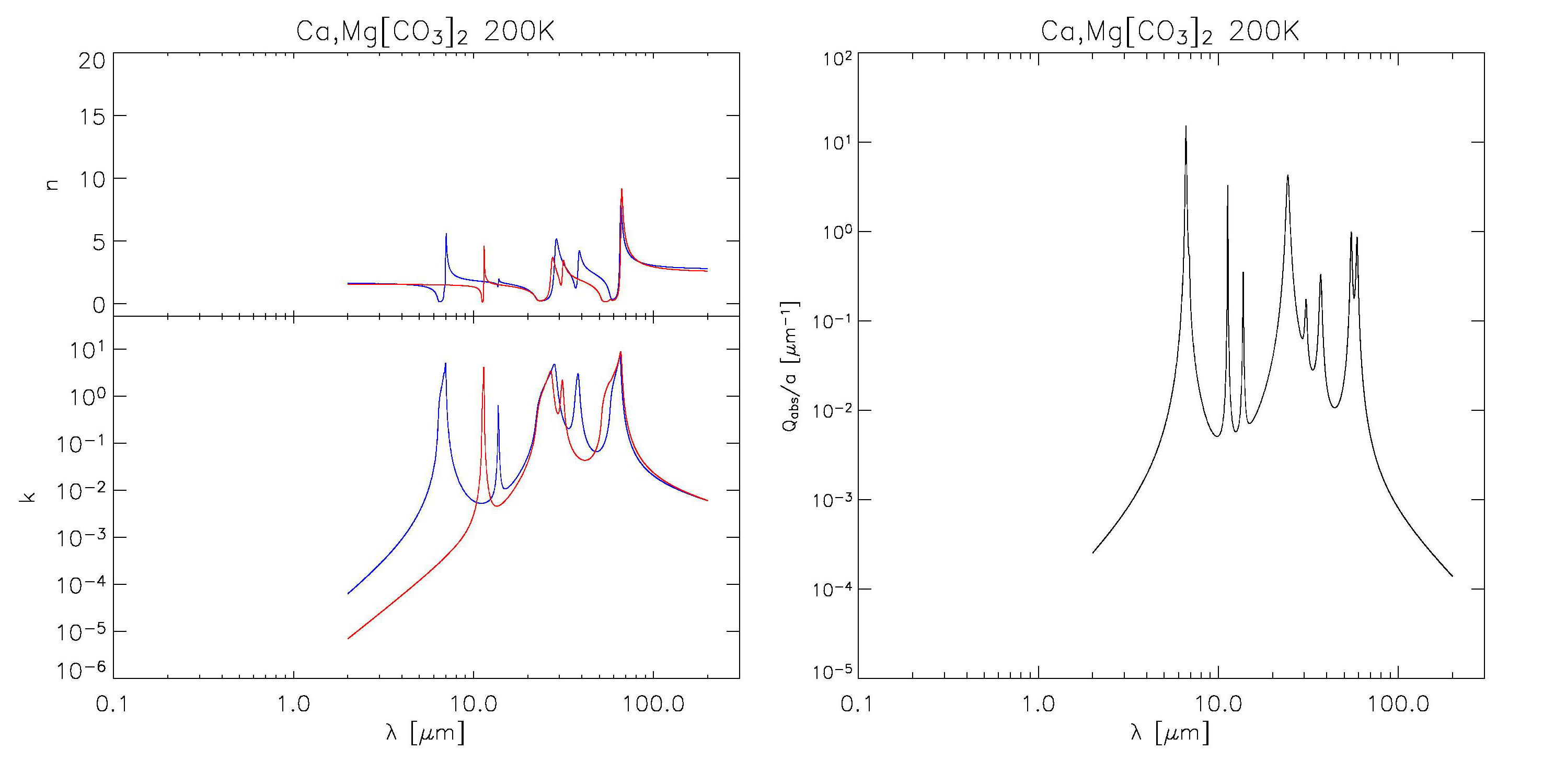

CaMg(CO3)2 (200 K)
Spectra

Link to a 300dpi and a 600dpi image
Dolomite E || c n-k-Data
Dolomite E || a,b n-k-Data

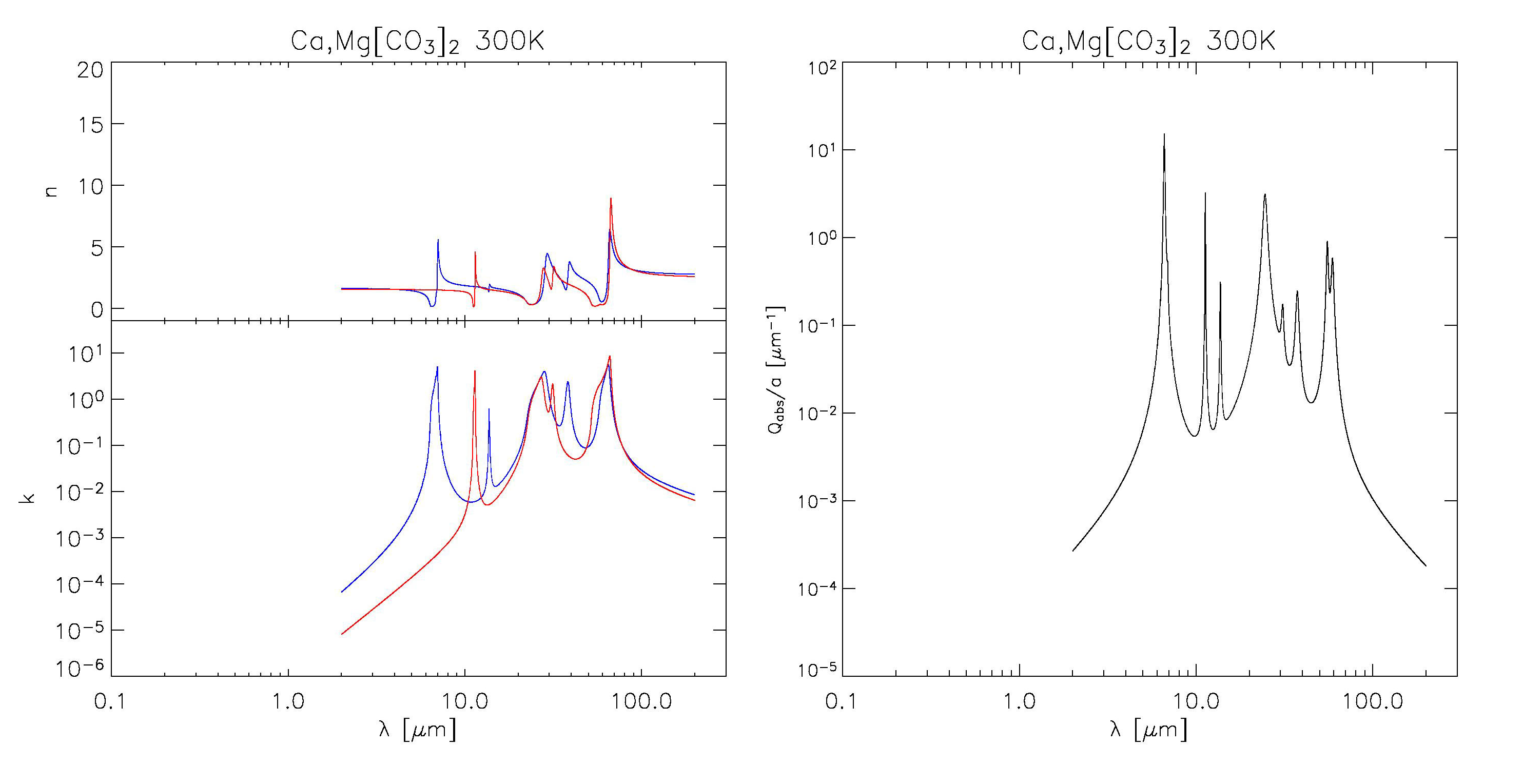

CaMg(CO3)2 (300 K)
Spectra

Link to a 300dpi and a 600dpi image
Dolomite E || c n-k-Data
Dolomite E || a,b n-k-Data

Top Optical Database main page

All n-k-Data tables consist of three columns. The first one contains the wavelength in micron. The second one is the real part of the complex refractive index (n), the third one is the imaginary part (k).

For the details of the derivation of all n-k-Data we refer to the mentioned publications (see the List of Publications).
